Cod. prodotto: I.ZM600-HP

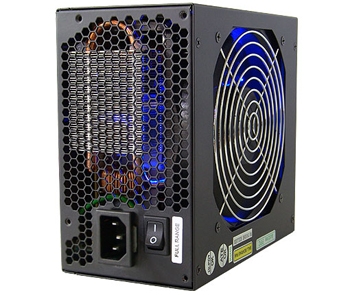

Zalman Zalman 600W € 118,90



Scheda tecnica
"
  		•  Heatpipe installata per massimizzare le performance di raffreddamento
  		• ACTIVE PFC
  		• Design ad alta efficienza
  		• Connettore ATX 20+4 pin
  		• Supporta connettori ATX12V per CPU a 4-Pin e EPS12V a 8-Pin
  		• Due connettori PCI-E a 6 pin
  		• Cavi modulari
  		• Ventola 12cm ultra silenziosa
  		• Quattro uscite indipendenti +12VDC
  		• Connettori EZ GRIP per una facile rimozione da ODD e HDD
  		• Terminali dorati
  		• Cavi sleeved
  		• Protezioni di sicurezza:
    Over-Voltage , Over-Current , Short-Circuit , Under-Voltage , Over-Temperature .
  		• LED BLU interno
  		• WEEE e RoHs
    ""
    AC Input Range
    Voltage 100VAC ~ 240VAC ±10%
    Frequency 47Hz~63Hz
    AC Input Current(Rated)
    115VAC 10A
    230VAC 5A
    PFC Type Active PFC
    Power Factor 99% Maximum
    Inrush Current
    Limit (@ Cold start at 25°C)
    115VAC 60A
    230VAC 100A
    Efficiency 84% Maximum @230VAC, Full&Typical load
    DC Output Voltage Regulations
    Output V. Regulation Range
    +3.3V ±5% +3.14V~+3.47V
    +5V ±5% +4.75V~+5.25V
    +12V1 ±5% +11.4V~+12.6V
    +12V2 ±5% +11.4V~+12.6V
    +12V3 ±5% +11.4V~+12.6V
    +12V4 ±5% +11.4V~+12.6V
    -12V ±10% -10.8V~-13V
    +5VSB ±5% +4.75V~+5.25V
    DC Output Ripple & Noise
    +3.3V 100mV
    +5V 100mV
    +12V1 200mV
    +12V2 200mV
    +12V3 200mV
    +12V4 200mV
    -12V 200mV
    +5VSB 100mV
    Protection Features Over Voltage Protection(OVP)
    Over Current Protection(OCP)
    Short Circuit Protection(SCP)
    Over Temperature Protection(OTP)
    Under Voltage Protection(UVP)
    Ambient Temperature
    Operation 0°C ~ +50°C
    Storage -20°C ~ +80°C
    Ambient Humidily
    Operation 5%RH ~ 95%RH
    Storage 5%RH ~ 95%RH
    Dimensions 150(L) X 165(W) X 86(H) mm
    "
